Intshayelelo
UkuFakwa kweHose yethu yobudoda kweHydraulic yenzelwe ukunikezela ngokhuseleko, -imidibaniso evuzayo yobungqina ekudingeni usetyenziso lwehydraulic. Idizayinwe ngokuchaneka komsonto kunye nezixhobo ezihlala ixesha elide, oku kufaneleka kuqinisekisa ukusebenza okuthembekileyo kwimizi-mveliso, iselula, kunye neenkqubo zehydraulic zaselwandle.

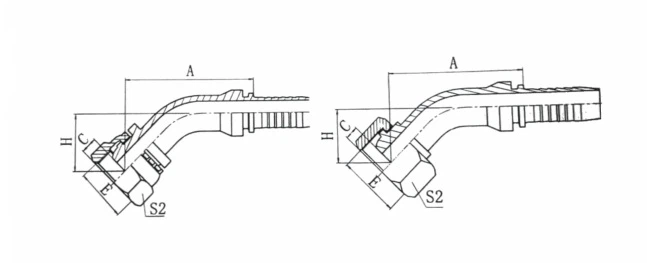

Iinkcukacha
|
ISIQENDU INOMBOLO. |
UMCHANGA E |
I-HOSE BORE |
IMILINGANISELO |
||||
|
DN |
ISIKHWAMA |
A |
C |
H |
S2 |
||
|
20141-10-03 |
M10X1 |
5 |
03 |
41.1 |
2.5 |
20.7 |
14 |
|
20141-10-04 |
M10X1 |
6 |
04 |
43.2 |
2.5 |
21.5 |
14 |
|
20141-12-03 |
M12X1.5 |
5 |
03 |
40.9 |
4 |
21.2 |
17 |
|
20141-12-04 |
M12X1.5 |
6 |
04 |
43 |
4 |
22 |
17 |
|
20141-14-04 |
M14X1.5 |
6 |
04 |
43.4 |
4.5 |
21.3 |
19 |
|
20141-14-05 |
M14X1.5 |
8 |
05 |
45.5 |
4.5 |
22.2 |
19 |
|
20141-16-04 |
M16X1.5 |
6 |
04 |
43.7 |
4.5 |
21.4 |
22 |
|
20141-16-05 |
M16X1.5 |
8 |
05 |
45.8 |
4.5 |
22.5 |
22 |
|
20141-16-06 |
M16X1.5 |
10 |
06 |
47.4 |
4.5 |
24.1 |
22 |
|
20141-18-05T |
M18X1.5 |
8 |
05 |
46.8 |
4 |
22.6 |
24 |
|
20141-18-06 |
M18X1.5 |
10 |
06 |
48.5 |
4 |
24.2 |
24 |
|
20141-18-08 |
M18X1.5 |
12 |
08 |
52.2 |
4 |
25.7 |
24 |
|
20141-20-06T |
M20X1.5 |
10 |
06 |
48.2 |
5.5 |
23.9 |
27 |
|
20141-20-08 |
M20X1.5 |
12 |
08 |
62.1 |
5.5 |
27.2 |
27 |
|
20141-22-06T |
M22X1.5 |
10 |
06 |
58.4 |
5 |
25.7 |
27 |
|
20141-22-08 |
M22X1.5 |
12 |
08 |
62.1 |
5 |
27.2 |
27 |
|
20141-24-08T |
M24X1.5 |
12 |
08 |
61.1 |
5.5 |
26.1 |
30 |
|
20141-24-10 |
M24X1.5 |
16 |
10 |
75.4 |
5 |
29.6 |
30 |
|
20141-27-10DT |
M27X1.5 |
16 |
10 |
74.4 |
5.5 |
29.6 |
32 |
|
20141-27-10T |
M27X2 |
16 |
10 |
74.4 |
5.5 |
29.6 |
32 |
|
20141-30-12D |
M30X1.5 |
20 |
12 |
80.9 |
6 |
33.5 |
36 |
|
20141-30-12 |
M30X2 |
20 |
12 |
80.9 |
6 |
33.5 |
36 |
|
20141-36-14T |
M36X2 |
22 |
14 |
83 |
7 |
32.64 |
41 |
|
20141-39-16T |
M39X2 |
25 |
16 |
88.2 |
7 |
33.95 |
46 |
|
20141-45-20T |
M45X2 |
32 |
20 |
99.1 |
8.5 |
38.4 |
55 |
|
20141-52-24T |
M52X2 |
40 |
24 |
114.1 |
9 |
43.4 |
60 |
Iiparamitha/iDatha yobuGcisa
|
Eyoqobo |
Zhejiang, China |
Umhla wokuzisa |
Kuyathethwana |
|
Isiqinisekiso |
GB/T19001-2016 idt ISO9001:2015 |
Ukupakisha |
umgangatho wokuthumela ngaphandle |
|
Izinto eziphathekayo |
Intsimbi yeCarbon |
Iwaranti |
1 unyaka |
|
Ixesha lokuhlawula |
TT |
MOQ |
2000 |
|
Imeko |
Entsha |
Umbala |
I-zinc emhlophe, i-zinc yombala |
Malunga neNkampani
Iingenelo
Kutheni iiNgcali zichaza uFakelo lwethu:
I-40% yobomi benkonzo obude kunomndilili woshishino
Inkonzo yemveliso yongxamiseko yeeyure ezingama-72
Iinjineli zezicelo ezizinikeleyo zabelwe yonke iakhawunti enkulu
Ixesha lokwenyani{0}}lokubonwa kwempahla ngeportal yabathengi
FAQ
Umbuzo: Yintoni i-Male Hydraulic Hose Fitting?
A: I-hose ye-hydraulic hose eyindoda luhlobo lwesihlanganisi esiyilelwe ukuncamathisela i-hydraulic hoses kumalungu (umz., iimpompo, iivalvu, iisilinda). Ibonisa imisonto yangaphandle ejijwayo kwibhinqa elihambelanayo{3}}kwizibuko elinomsonto okanye iadaptha.
Umbuzo: Zeziphi iintlobo eziqhelekileyo zofakelo lwe-hydraulic yamadoda?
A: Iintlobo ezidumileyo ziquka:
I-JIC (iBhunga leShishini eliManyeneyo): Izihlalo ezivuthayo ze-37-degree.
I-NPT (Umbhobho weSizwe uTapered): Imisonto ecuthiweyo yokutywinwa.
I-BSP (iMbhobho yoMgangatho waseBrithani): Iintambo ezihambelanayo okanye ezifakwe kwi-tapered (BSPP/BSPT).
ORFS (O{0}}Isitywina soBuso seRingi): Ubuso obucaba obune-O{1}}yeringi yokuvuza{2}}koqhagamshelwano olungenabungqina.
I-Metric: Imisonto ihambelana nemigangatho ye-ISO/DIN.
Umbuzo: Ndingayikhetha njani i-hydraulic efanelekileyo yamadoda?
A: Qwalasela:
Uhlobo/ubungakanani bomsonto (umzekelo, 1/2" NPT, JIC #8).
Umlinganiselo woxinzelelo (umdlalo kwiimfuno zenkqubo).
Izinto eziphathekayo (intsimbi, insimbi engenasici, ubhedu).
Ukuhambelana nemibhobho kunye nezixhobo.
Umbuzo: Ndikuthintela njani ukuvuza kufakelo lwe-hydraulic yamadoda?
A: Qinisekisa ukuba imisonto icocekile kwaye ayonakaliswa.
Sebenzisa intambo yokutywina (ye-NPT) okanye i-O- amakhonkco (ye-ORFS).
Qinisa kwitorque ecetyiswayo{0}}unqande ngaphezulu{1}}ukuqinisa.
Umbuzo: Ndingaxuba imigangatho eyahlukeneyo yomsonto (umzekelo, i-NPT ne-BSP)?
A: Hayi. Ukuxuba imicu kunokubangela ukuvuza okanye umonakalo. Sebenzisa iiadaptha ukuba uqhagamshela imigangatho eyahlukileyo.
Umbuzo: Uthini umahluko phakathi kwemisonto ye-NPT kunye ne-NPTF?
A: NPT (Umbhobho weSizwe uTapered): Ifuna isitywini.
I-NPTF (i-Dryseal): Yenzelwe ukutywina ngaphandle kwesitywina kodwa ihlala isetyenziselwa ukhuseleko.
Umbuzo: Ndiwulinganisa njani ubungakanani bomsonto wokufakwa kwehydraulic oyindoda?
A: Sebenzisa i-caliper ukulinganisa i-diameter yangaphandle (OD) yemisonto kwaye ujonge itshathi yomsonto. Qaphela i-pitch (imisonto nge-intshi nganye ye-imperial, mm ye-metric).
Umbuzo: Zeziphi izinto ezenziwe ngazo izixhobo zehydraulic zamadoda?
A: Intsimbi yeCarbon: Ixabiso-elisebenzayo, ukomelela okuphezulu.
Intsimbi engatyiwa: iCorrosion{0}}iyaxhathisa.
Ubhedu: Isetyenziswa-kuxinzelelo oluphantsi, kubume bendawo ezonakalisayo.
UMBUZO: Yintoni eyona nto iphezulu yoxinzelelo kwimilinganiselo yamadoda?
A: Iyahluka ngokohlobo/impahla (umzekelo, izifakelo ze-JIC zinokuphatha 5, 000+ PSI). Jonga iinkcukacha zomenzi.
Umbuzo: Ndingaphinda ndisebenzise izifakelo zehydraulic zamadoda?
A: Ewe, ukuba ayonakaliswa. Hlola imisonto kunye neendawo zokutywina ukuba zigugile/iintanda phambi kokuba usetyenziswe kwakhona.
Umbuzo: Kutheni le nto ifatisi yam iqhubeka ikhulula?
A: Ukungcangcazela: Sebenzisa iwasha yesitshixo okanye-ulwelo lokutshixa.
Itorque engalunganga: Landela imilinganiselo yomenzi.
Ukunxitywa komsonto: Buyisela indawo ukuba ukhutshiwe.
Umbuzo: Ndingazithenga phi-izifakelo zamanzi ezisemgangathweni zamadoda?
A: Ukuthengwa kubanikezeli be-hydraulic abaqinisekisiweyo okanye abavelisi. Ukuqinisekisa ukuthotyelwa kwemigangatho (SAE, ISO, DIN).
